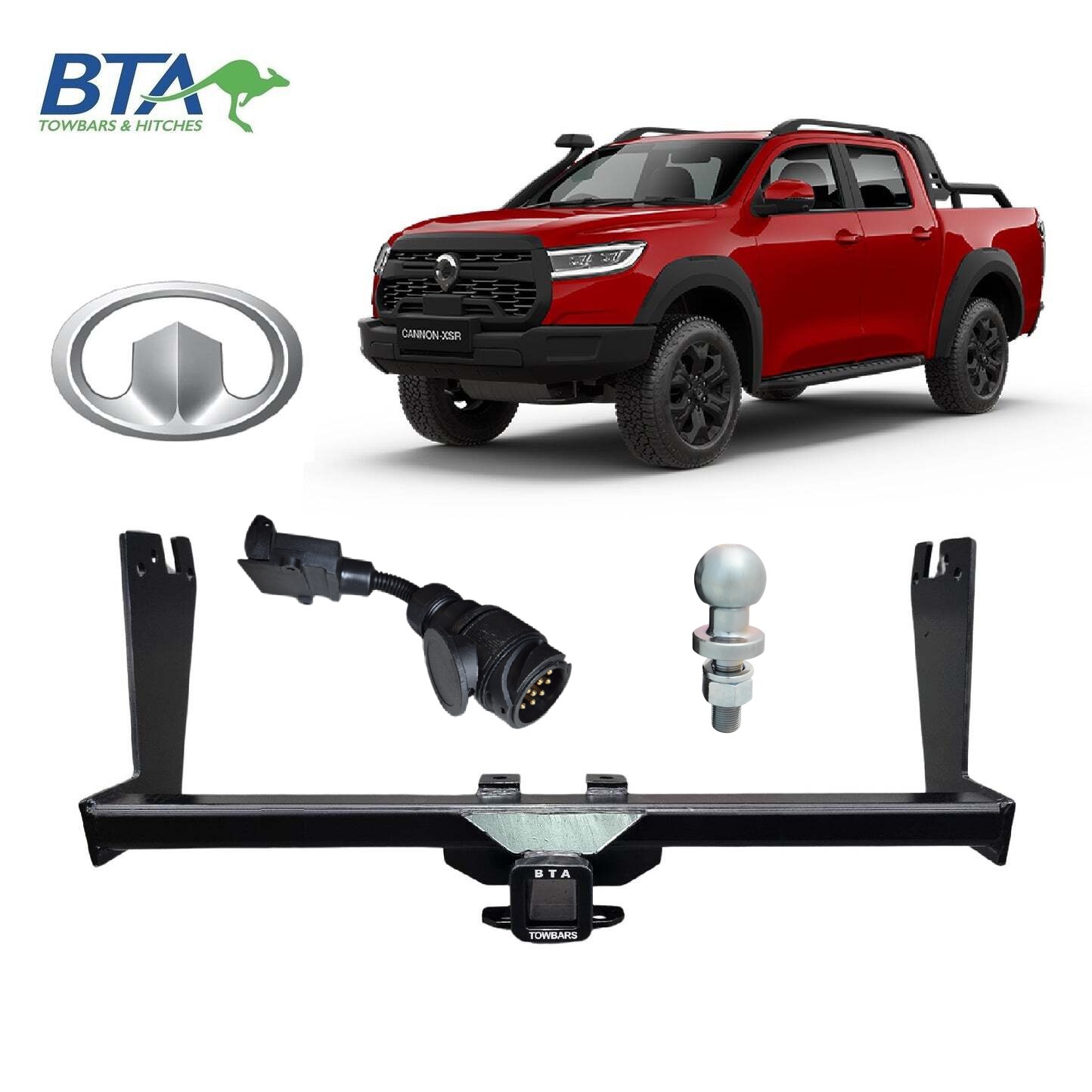

Make: Great Wall

Model: Cannon XSR

Year: 01/2023 - On

Type: Ute, Tray

Towing Capacity: 3000/300kg

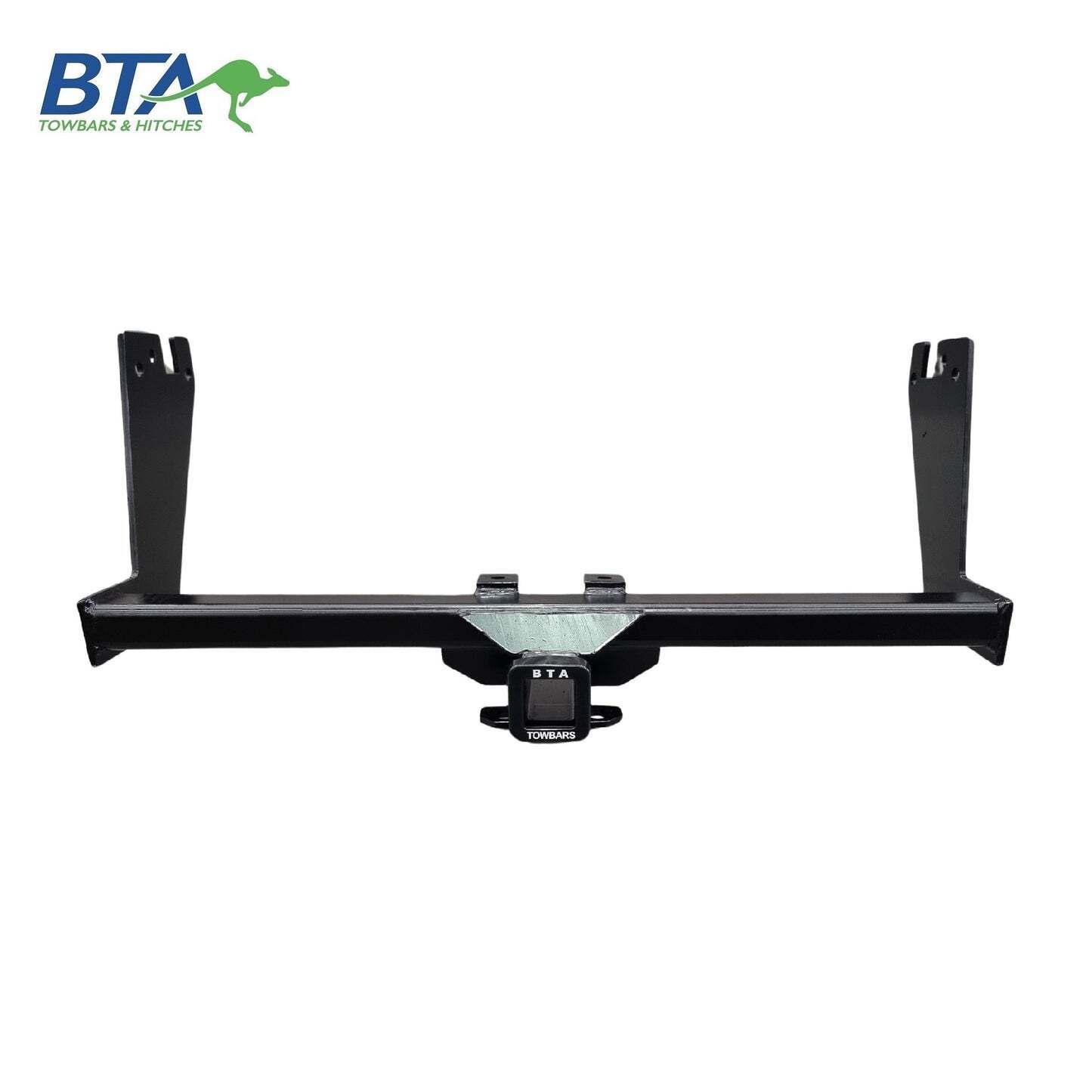

Towball Mount: HD132

Towbar Class: Class 4

Towbar WGT (KG): 18

Direct fit wiring harness: 13pin to 7pin Wiring Adaptor Included ( Fits to Exisiting wireing plug and play)

Coating: Enamel Immersion Double Dipped Finish







Vehicle: GWM CANNON XSR UTE Towing Capacity: 3000kg / 300kg Fitting Kit: 6x 120 x 12mm Bolts & flange nuts. 2x 80 x 12mm Bolts star and flat washers. 2x D-Shackles. 2x Towbar Rating Labels.



1. Remove silver bumper holding bolts ( 3 either side of chassis).

2. Remove 13 pin Euro style plug bracket (bolted pass side). Then remove bracket completely from plug, Discard bracket.

3. Fit towbar into position, aligning side plate holes with bolts removed.

4. Fit 120 x 12mm bolts (3 either side) do not tighten at this stage.

5. Fit 80 x 12mm bolts to centre Towbar support tags, Which will align with centre crossmember holes.

6. Tighten all bolts.

7. Fit 13 pin Adapter supplied to 13 pin plug on vehicle. Cable tie 13 pin plug up behind tow hitch then fit 7 pin flat plug to bracket supplied.

8. Apply Towbar Rating Labels to driver’s side door sill and non-removable part of the towbar.

SKU GW03H_RF
Brand BTA
Shipping Weight 25.0000kg
Shipping Width 0.600m
Shipping Height 0.400m
Shipping Length 1.050m
Shipping Cubic 0.252000000m3
